Cross-Sections#
UXarray allows for cross-sections to be performed along arbitrary great-circle arcs (GCAs) and lines of constant latitude or longitude.
This enables analysis of workflows such as Vertical Cross-Sections when vertical dimensions (i.e., levels) are present, temporal visualizations (e.g., Hovmöller diagram), and even visualizations of arbitrary dimensions along GCAs or constant lat/lon lines.
import matplotlib.pyplot as plt
import numpy as np
import uxarray as ux
Overview#
Cross-sections can be performed by using the .cross_section method on a ux.UxDataArray. The original data variable is sampled along steps number of evenly spaced points, with the result stored as a xr.DataArray, since there is no longer any grid information associated with the sampled result.
Note
The cross_section.bounding_box, cross_section.bounding_circle and cross_section.nearest_neighbor methods will be deprecated in a future release, as they are now housed under the subset accessor.
Let’s open up our data and define a small helper function for labeling the sampled coordinates.
def set_lon_lat_xticks(ax, cross_section, n_ticks=6):
"""Utility function to draw stacked lat/lon points along the sampled cross-section"""
da = cross_section
N = da.sizes["steps"]
tick_pos = np.linspace(0, N - 1, n_ticks, dtype=int)
lons = da["lon"].values[tick_pos]
lats = da["lat"].values[tick_pos]
tick_labels = []
for lon, lat in zip(lons, lats):
lon_dir = "E" if lon >= 0 else "W"
lat_dir = "N" if lat >= 0 else "S"
tick_labels.append(f"{abs(lon):.2f}°{lon_dir}\n{abs(lat):.2f}°{lat_dir}")
ax.set_xticks(tick_pos)
ax.set_xticklabels(tick_labels)
ax.set_xlabel("Longitude\nLatitude")
plt.tight_layout()
return fig, ax
grid_path = "../../test/meshfiles/scrip/ne30pg2/grid.nc"
data_path = "../../test/meshfiles/scrip/ne30pg2/data.nc"
uxds = ux.open_dataset(grid_path, data_path)
uxds["RELHUM"]
<xarray.UxDataArray 'RELHUM' (lev: 72, n_face: 21600)> Size: 6MB
[1555200 values with dtype=float32]
Coordinates:
* lev (lev) float64 576B 0.1238 0.1828 0.2699 ... 986.2 993.8 998.5
time object 8B ...
Dimensions without coordinates: n_face
Attributes:
mdims: 1
units: percent
long_name: Relative humidity
standard_name: relative_humidity

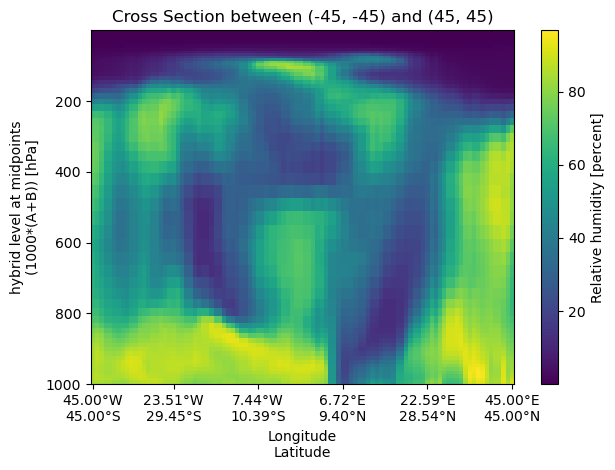

cell_methods: time: meanArbitrary Great Circle Arc (GCA)#
A cross‑section can be performed between two arbitrary (lon,lat) points, which will form a geodesic arc.
start_point = (-45, -45)
end_point = (45, 45)
cross_section_gca = uxds["RELHUM"].cross_section(
start=start_point, end=end_point, steps=100
)
fig, ax = plt.subplots()
cross_section_gca.plot(ax=ax)
set_lon_lat_xticks(ax, cross_section_gca)
ax.set_title(f"Cross Section between {start_point} and {end_point}")
ax.invert_yaxis()
Constant Latitude#
A constant‐latitude cross‐section samples data along a horizontal line at a fixed latitude.
lat = 45
cross_section_const_lat = uxds["RELHUM"].cross_section(lat=lat, steps=100)
fig, ax = plt.subplots()
cross_section_const_lat.plot(ax=ax)
set_lon_lat_xticks(ax, cross_section_const_lat)
ax.set_title(f"Cross Section at {lat}° latitude.")
ax.invert_yaxis()

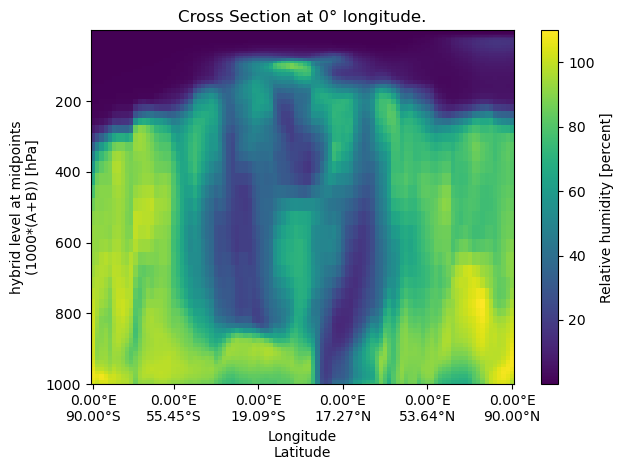

Constant Longitude#
A constant‐longitude cross‐section samples data along a vertical line at a fixed longitude
lon = 0
cross_section_const_lon = uxds["RELHUM"].cross_section(lon=lon, steps=100)
fig, ax = plt.subplots()
cross_section_const_lon.plot(ax=ax)
set_lon_lat_xticks(ax, cross_section_const_lon)
ax.set_title(f"Cross Section at {lon}° longitude.")
ax.invert_yaxis()

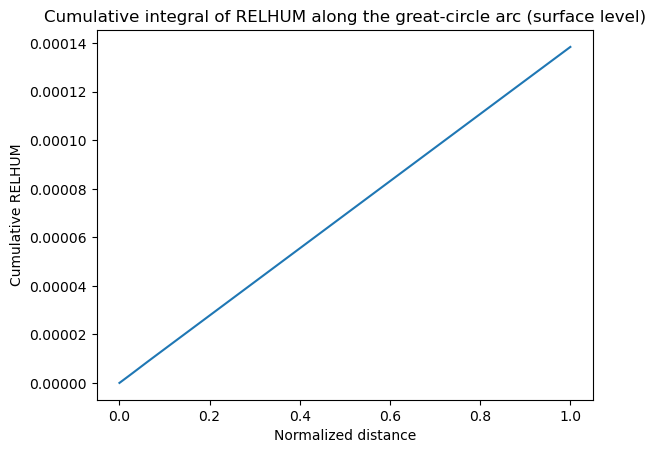

Cumulative Integration Along the Arc#
Cross-section outputs are plain xarray.DataArray objects, so you can call xarray utilities like cumulative_integrate directly. In the example below we attach a normalized distance coordinate along the great-circle arc and compute the cumulative integral of relative humidity along that path. Swap in actual great-circle distances if you want physical units.
normalized_distance = np.linspace(0.0, 1.0, cross_section_gca.sizes["steps"])
cross_section_gca_distance = cross_section_gca.assign_coords(
distance=("steps", normalized_distance)
)
cumulative_relhum = cross_section_gca_distance.cumulative_integrate(coord="distance")
cumulative_relhum.isel(lev=0).plot(x="distance")
plt.title("Cumulative integral of RELHUM along the great-circle arc (surface level)")
plt.xlabel("Normalized distance")
plt.ylabel("Cumulative RELHUM")
Text(0, 0.5, 'Cumulative RELHUM')
Cumulative Integration on Other UxDataArrays#
You can also call cumulative_integrate on any UxDataArray (not just cross-section outputs). Because UxDataArray subclasses xarray.DataArray, the cumulative result keeps the uxgrid attribute intact.
import uxarray as ux
uxds = ux.open_dataset(
"../../test/meshfiles/ugrid/outCSne30/outCSne30.ug",
"../../test/meshfiles/ugrid/outCSne30/outCSne30_sel_timeseries.nc",
)
da = uxds["psi"]
cumulative = da.cumulative_integrate(coord="time", datetime_unit="h")
# uxgrid is preserved on the cumulative result
cumulative.uxgrid is da.uxgrid
True
cumulative
<xarray.UxDataArray 'psi' (time: 6, n_face: 5400)> Size: 259kB
array([[ 0. , 0. , 0. , ..., 0. ,
0. , 0. ],
[ 0.5 , 0.50999999, 0.51999998, ..., 54.47000122,
54.47999954, 54.49000168],
[ 2. , 2.01999998, 2.03999996, ..., 109.94000244,
109.95999908, 109.98000336],
[ 4.5 , 4.52999997, 4.55999994, ..., 166.41000366,
166.43999863, 166.47000504],
[ 8. , 8.0400002 , 8.07999992, ..., 223.88000488,
223.91999817, 223.96000671],
[ 12.5 , 12.55000043, 12.5999999 , ..., 282.3500061 ,
282.39999771, 282.45000839]], shape=(6, 5400))
Coordinates:
* time (time) datetime64[ns] 48B 2018-04-28 ... 2018-04-28T05:00:00
Dimensions without coordinates: n_faceThe psi variable in outCSne30 has dimensions time: 6, n_face: 5400, representing six time steps across 5,400 faces. To visualize the cumulative field over all faces at a single time step, slice by time and use the UxDataArray plot accessor (polygon shading).
time_index = 2
cumulative_time0 = cumulative.isel(time=time_index, drop=True)
cumulative_time0.plot(rasterize=True, cmap="viridis")
